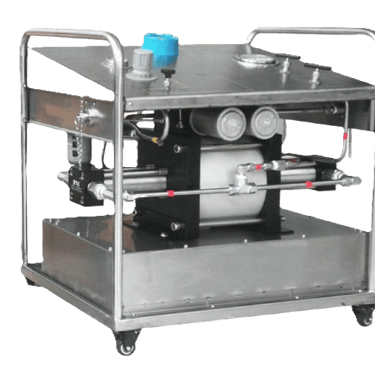

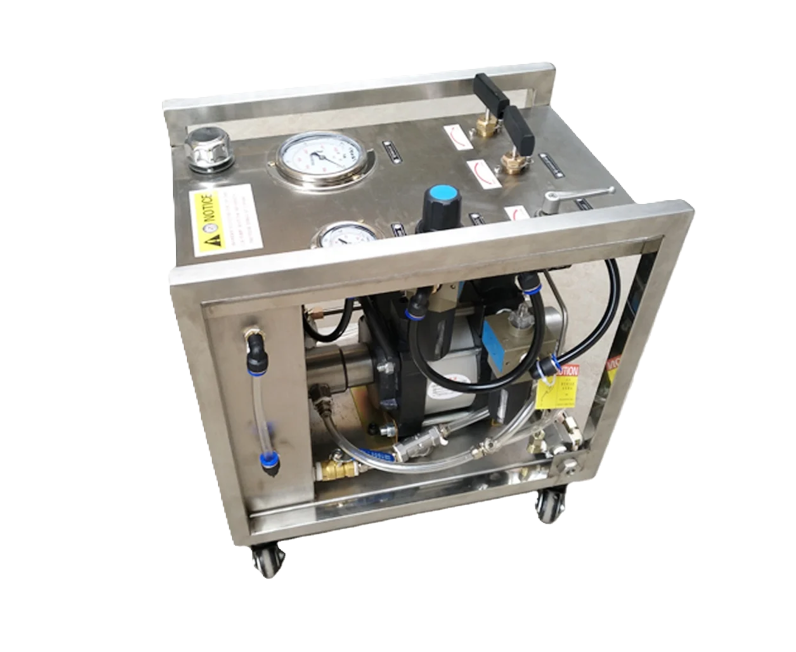

Hydro-Testing Pumps
Our Hydro Testing Pump provides accurate and efficient pressure testing for pipes, tanks, cylinders, castings, and industrial components. Engineered with high-strength materials, it ensures stable pressure output, smooth operation, and long service life. Ideal for construction, plumbing, manufacturing, and maintenance applications.

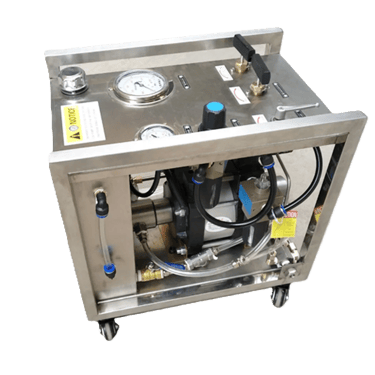

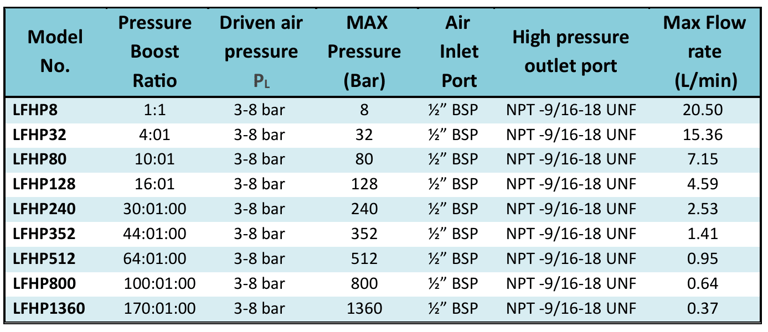

LPP SERIES LOW FLOW RATE LIQUID (WATER/OIL) PUMP
Liquid pump with maximum outlet pressure up to 1360 bar.
C frame Cabinet Material - SS304
Water/Oil Tank – 6 to 8Ltr Stainless Steel Tank with oil indicator Scale. Isolation Valves – will be change as per pressure Air On/Off Ball Valve.
Pressure Gauges - 4” Dial Discharge Pressure Gauge
Air Pressure Gauge - 2.5" Dial range 0-8 Bar / 150 psi
Stain Steel tubing – lot of ¼” HP Fitting
Air Filter Regulator - ½” BSP Air Inlet Port

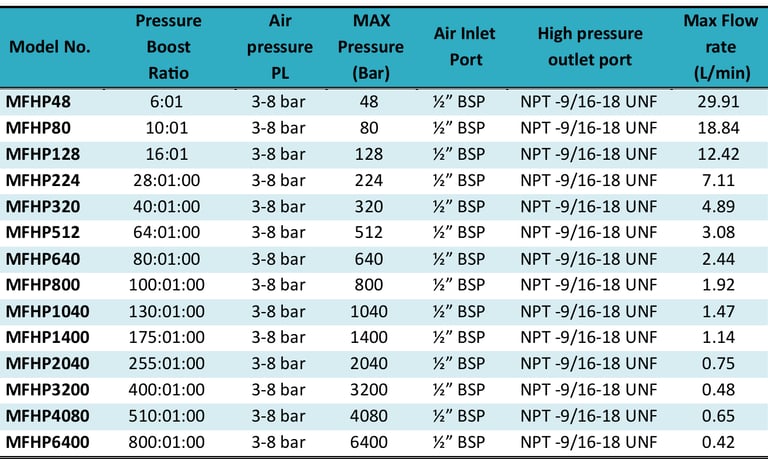

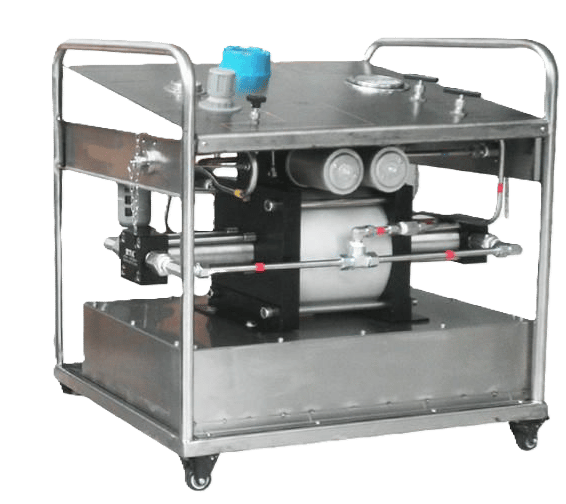

MFHP SERIES IS THE MEDIUM FLOW RATE LIQUID (WATER/OIL) PUMP
Model Liquid pump with maximum outlet pressure up to 6400 bar.
C frame Cabinet Material - SS304
Water/Oil Tank – 6 to 8Ltr Stainless Steel Tank with oil indicator Scale. Isolation Valves – will be change as per pressure Air On/Off Ball Valve.
Pressure Gauges - 4” Dial Discharge Pressure Gauge
Air Pressure Gauge - 2.5" Dial range 0-8 Bar / 150 psi
Stain Steel tubing – lot of ¼” HP Fitting
Air Filter Regulator - ½” BSP Air Inlet Port

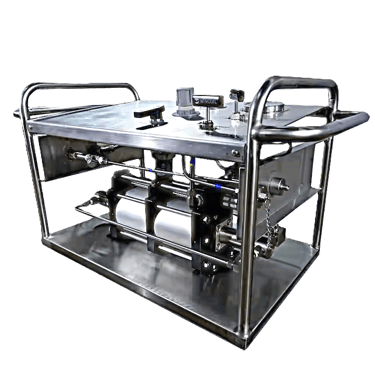

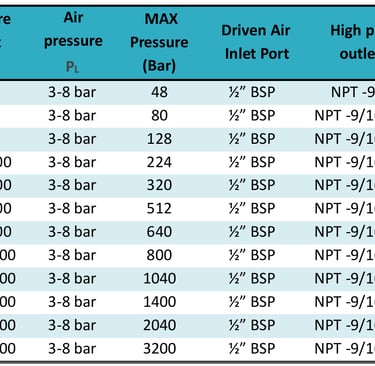

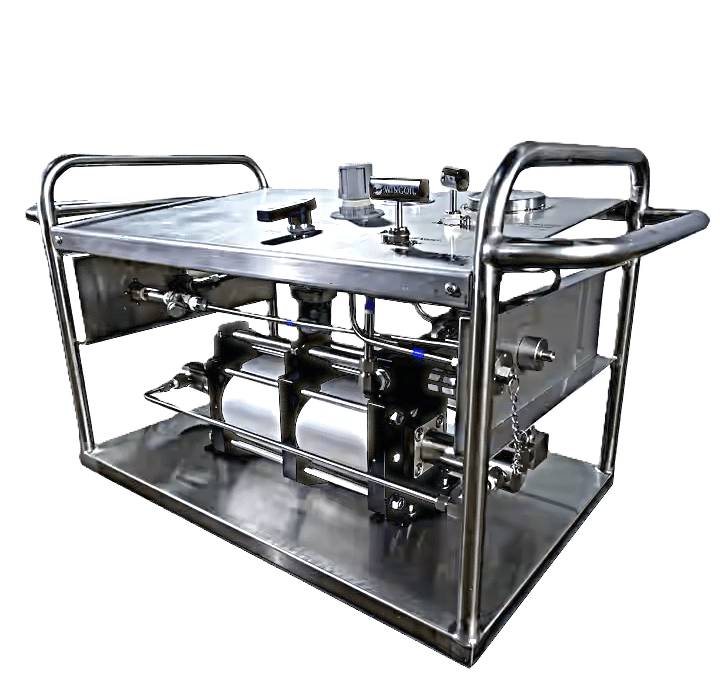

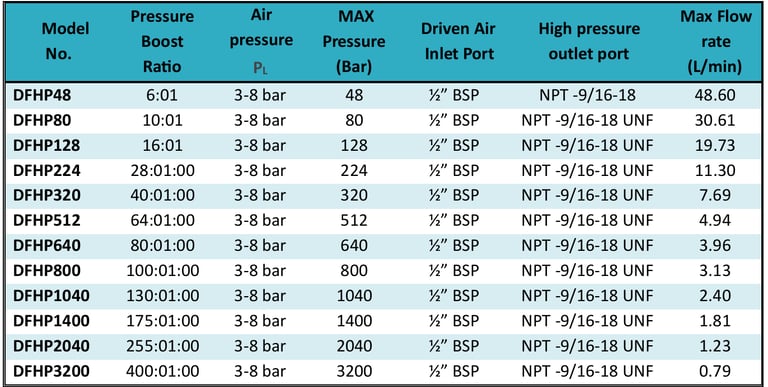

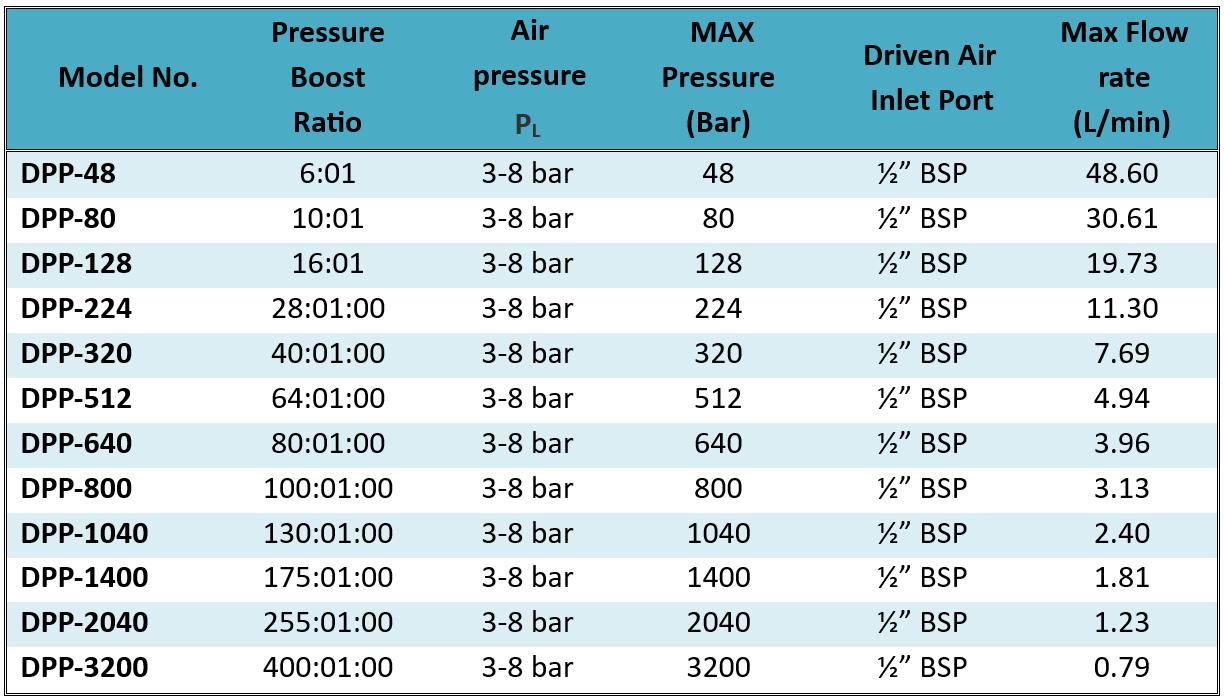

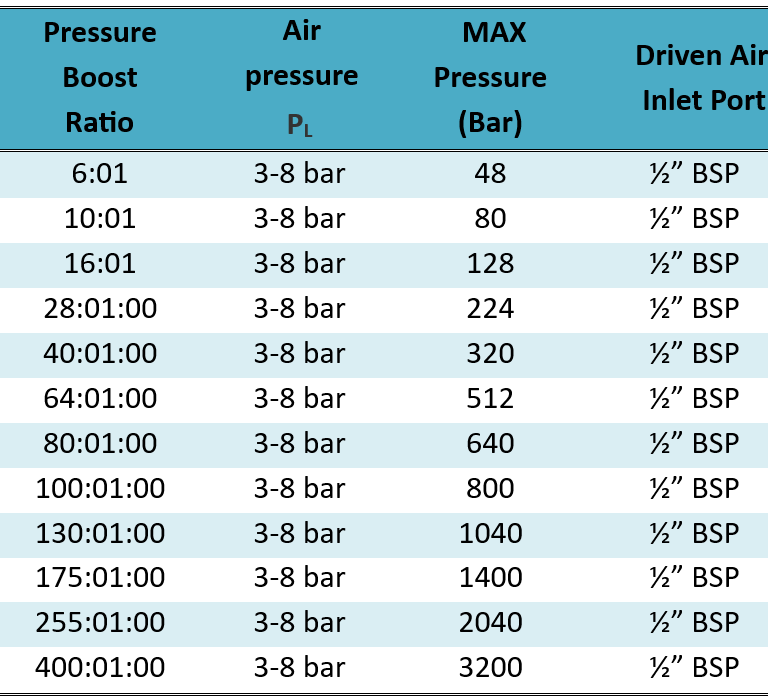

DFHP SERIES IS THE DOUBLE ACTING & HIGH FLOW RATE LIQUID (WATER/OIL) PUMP
Model Liquid pump with maximum outlet pressure up to 3200 bar.
C frame Cabinet Material - SS304
Water/Oil Tank – 6 to 8Ltr Stainless Steel Tank with oil indicator Scale. Isolation Valves – will be change as per pressure Air On/Off Ball Valve.
Pressure Gauges - 4” Dial Discharge Pressure Gauge
Air Pressure Gauge - 2.5" Dial range 0-8 Bar / 150 psi
Stain Steel tubing – lot of ¼” HP Fitting
Air Filter Regulator - ½” BSP Air Inlet Port
