Cold Cutting Blades and Tools
Precision-engineered cutting solutions designed for safe, spark-free, and accurate operations across pipelines, metal structures, and industrial applications. Ideal for on-site maintenance, shutdowns, and high-risk environments.

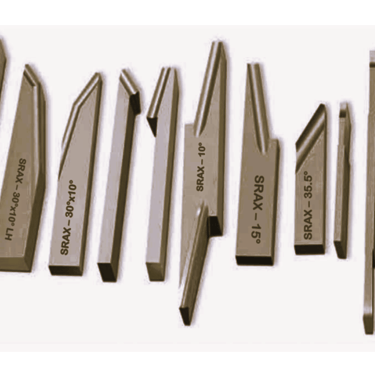

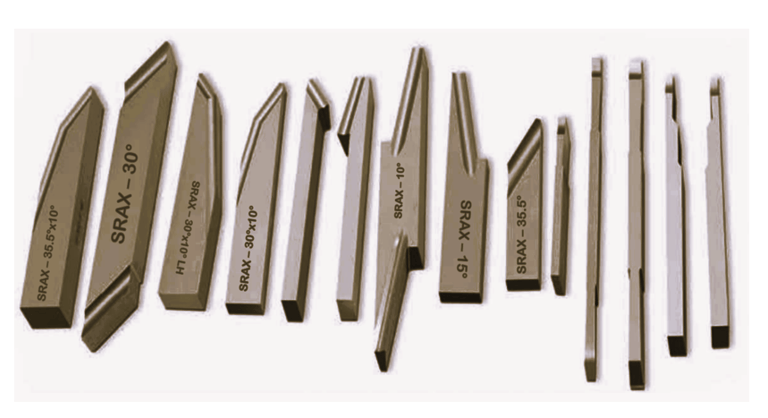

In-Situ Machining Blades
Unlike standard lathe parting tools, these blades are built to handle severe interrupted cuts (such as weld seams or out-of-round pipe) while being driven radially inward by a rotating machine ring
A split frame machine parting blade-commonly referred to in the field as a clamshell pipe cutter cut-off tool or straight sever bit-is a precision, high-rigidity industrial cutting tool designed exclusively for portable orbital lathes. Its primary function is the "cold cutting" (flame-free and spark-free) separation of inline piping systems during pipeline maintenance, valve installations, and structural decommissioning
Features:
Vibration Resistance: Heavy-duty tool bodies absorb severe mechanical chatter. This stabilizes the edge during interrupted cuts on out-of-round piping.
Built-in Side Clearance: Back-tapered or trapezoidal blade bodies narrow toward the bottom. This prevents the tool sides from rubbing or binding against the pipe walls.
Indexable Pocket Locking: Rigid clamping mechanisms secure replaceable inserts. This ensures precise center-line repeatability during high-pressure plunges.
Modular Shank Layout: Standardized dimensioning fits globally recognized tool slide pockets. This allows quick swapping between diverse machine brands.
Optimized Chip Breakers: Pressed-in rake geometries curl and break metal chips into tight scrolls. This forces debris out of deep, narrow pipe grooves.
